Casa /Produtos/Fitas de aço carbono/Factory Outlet Copper Stainless Steels and Carbon Steels Joining Alloy Welding Weld Strip Weld Segment Aluminum Silver Welding Strip

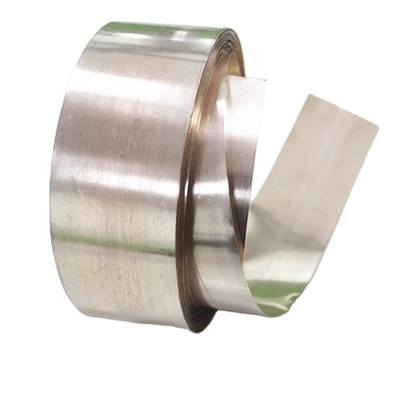

Factory Outlet Copper Stainless Steels and Carbon Steels Joining Alloy Welding Weld Strip Weld Segment Aluminum Silver Welding Strip

1.0 kilogram
MOQ
Factory Outlet Copper Stainless Steels and Carbon Steels Joining Alloy Welding Weld Strip Weld Segment Aluminum Silver Welding Strip
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 1year
Customized support: OEM, ODM
Model Number: BFM
Material: Copper / Copper Alloy/Silver, Welding Electrodes
Operating Current: none
Welding Current: none
Operating Temperature: 600-800
Application: copper, stainless steel, steel etc.
Product Name: Covered Welding Rod
Usages: Welding Stainless Steel Structure
OEM: Accept OEM
Length: custom made
Package: 25KG/Carton
In stock: Shipped Directly
Main Market: Woldwide
ISO 9001: Approved
Delivery Time: 7-15 Work Days
Informação básica
Model Number: BFM
Condições de Pagamento e Envio
Supply Ability: 1000 Kilogram/Kilograms per Month
Descrição de produto
Trademark
Series
silver content
Solidus
Liquidus
-12
AgCuZnNi
39~41
674
768
-11
AgCuZnNiMn
49~51
687
704
-20
AgcuZnNiMn
24.2~26.2
717
799
-76
AgCuZnNiMn
35.2~37.2
685
759
-86
AgCuZnNiMn
29.2~31.2
715
768
-303
AgCuZn
44~46
665
745
-304
AgCuZn
49~51
690
775
-308
AgCu
71~73
779
779
-2
AgCuZnCdNi
27~29
603
709
-35
AgCuZnCdNi
20.7~22.5
593
737
-312
AgCuZnCdNi
39~41
598
610
-18
AgCuZnCdSn
19.7~21.6
589
734
-1B
AgCuZnCdSn
18.2~20
593
742
-89
AgCuZnCdSn
16.1~18
589
758
-36
AgCuZnCdSn
13.6~15.5
577
774
-68
AgCuZnNiMn
9.2~10.8
582
817
-8
AgCuZnCd
7.2~8.8
580
835
-29
AgCuZnCdMn
3.0~3.8
839
877
Support To Customize The Specifications You Need According To Your Needs

Company Profile
Zhengzhou Hengde Metal Materials Co., Ltd. specializes in the production of diamond products, welding materials, welding equipment, superhard materials, cemented carbide, metal powder, metal products, hardware tools, building materials, aluminum, steel, wire and cable, wire materials, machinery equipment

We have professional engineers, after-sales personnel and a young and strong sales team. In line with the principle of "people-oriented, technology-leading, honest management", we will provide you with reliable products and the best service.。
Products Description


Aircraft Parts Welding Success Stories

Serrated Welding Success Stories

Successful case of copper pipe welding

Brazing Processing Cooperation Successful Case Show
Product Introduction

Silver-based solder (environmentally friendly)

Silver-based solder is an alloy mainly composed of silver or silver-copper. This kind of solder has excellent process performance, low melting point, good wettability and caulking performance, and excellent strength, plasticity, electrical conductivity and corrosion resistance. A class of brazing materials with a wide range of applications. Flux-cored silver electrode, coated silver electrode, flux-cored welding ring, coated welding ring, flat wire, welding ribbon, powder, paste, granule, ring, special-shaped ring and other forms.

Silver-based solder (phosphorus)

Silver-copper-phosphorus solder is the addition of silver (Ag) to the phosphorus-copper alloy, which reduces the melting point of the solder and improves the plasticity, strength, toughness and wettability of the solder. During brazing, the heating time should be as short as possible, and the joint may be bright gray, which can be restored to copper color after being immersed in 5%-10% dilute sulfuric acid for pickling. Coated welding rod, Coated welding ring, Granule, Solder paste, Powder, Conventional welding wire, Granule, Welding rod, Welding ring, Welding ribbon, Flat bar, Special-shaped ring, etc.

Copper base solder

Brass brazing filler metal has good plasticity and high melting point, and can be completed by flame brazing, induction brazing and other methods. Due to the high zinc content, the brazing amount contains a small amount of silicon, and overheating should be avoided during brazing to reduce the effect of zinc volatilization on the compactness of the brazing seam. Flux-cored welding wire, coated welding wire, flux-cored welding ring, coated welding ring, conventional welding rod, powder, paste, welding ring, welding strip, flat bar, special-shaped ring, etc.

Copper-Based Solder (Containing Phosphorus)

The content of phosphorus is the key to determine the melting range and performance. It can be used as a self-flux in the welding of copper and copper without additional flux, and has good fluidity. However, when brazing brass and bronze, it needs to be combined with flux. According to market demand, phosphor bronze solders with various composition ratios can be provided. Coated welding rod, coated welding ring, conventional welding wire, welding rod, powder, paste, welding ring, welding strip, flat bar, special-shaped ring, etc.

Aluminum flux cored solder

Aluminum flux-cored welding wire is a composite brazing material whose outer skin is aluminum-silicon alloy and inner layer is white fluoride flux. The white flux is non-hygroscopic, non-corrosive, and does not require cleaning after welding. Ring wire diameter range: 0.8mm-2.5mm, ring inner diameter range: 4mm-50mm. Oval, square, U-shaped and other different physical shapes can be customized according to customer needs.

Copper and aluminum flux cored solder

Copper-aluminum flux-cored wire is a composite brazing material whose outer skin is zinc-aluminum alloy and the inner layer is white fluoride flux. The white flux is non-hygroscopic, non-corrosive, and does not require cleaning after welding. Ring size: wire diameter range: 0.8mm-2.5mm; ring inner diameter range: 4mm-50mm. There are wires, straight bars, welding rings, etc. Special-shaped welding rings have different physical shapes such as oval, square, U-shaped, etc., which can be customized according to customer needs.
Production Equipment
FAQ

Q1. Which products are your best-selling products?

A: Phosphor copper brazing alloy, silver-based brazing alloy, brass brazing alloy; solder tab; solder ring

Q2. Can you provide customized products?

A: Yes. We have a professional R&D department, if you have any special needs for products, please contact us for the best cooperation.

Q3. How long is the delivery time?

A: Usually 7-15 days after we receive the prepayment.

Q4: What about the payment?

A:We accept T/T, and L/C for the large quantities order, and Western union and Paypal will be accept for the small quantities order.

Q5: What is your quality control process?

A: We do 100% testing for any of products before the order has been delivered.

Q6:What kind of services do you provide?

A:We provide hourly online service, welcome your consultation and look forward to working with you.
